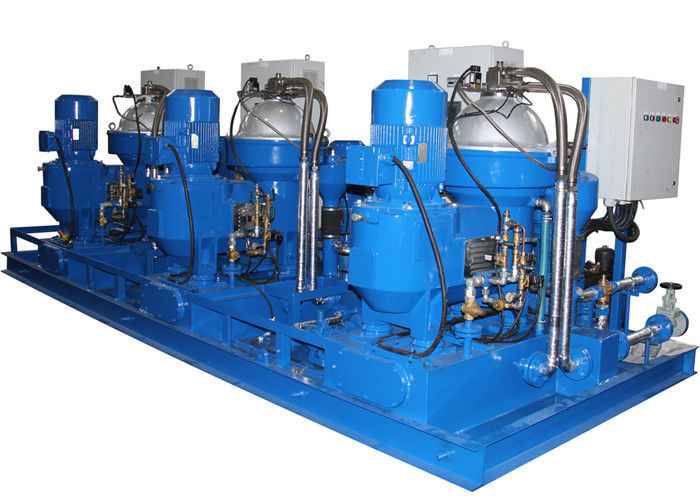

China Product 3 Phase Centrifuge Waste Oil Purification Machine Fuel Oil Centrifuge
Description:
Model PDSD14000 is module type, which is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station, so as to reduce wear of the diesel engine and other machine, and prolong engine life.
The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.
The machine adopts automatic control, and has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.
The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.
The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.
The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.
Advantages:
1. Moisture sensor(No-gravity ring) technology is adopted to ensure the quality of the oil after separation.
2. Our separator is with low power consumption and light weight, which is in accordance with the requirements of the national industry.
3. High rotating speed ensure the best separation effect.
4. The new type seamless belt drive(No second tensioning required) brings more reliable structure and more simplified mechanical structure.
5. Bowl with full hydraulic structure brings more thorough slage discharge, more stable and reliable performance.
Main Technical Specification:
|
Discharging type |
Variable discharging | |
| Ratedcapacity | L/h | 14000(0# diesel oil) |
| Rotating speed | RPM | 7800 |
| Output pressure of clear oil | Mpa | ≤0.2 |
| Output pressure of sewage | Mpa | ≤0.3 |
| Motor power | Kw | 22 |
| Full volume of the slag cavity | L | 2 |
Other oil capacity reference chart:
|
Oil types |
Fuel oil |
Lubrication oil |
|||||||||
|
Fuel oil |
Heavy fuel oil |
SAE30, 40 |
Detergence oil |
Steam turbine oil |
|||||||
|
Kinematical viscosity(mm2/s) |
1.9-5.5 |
5.5-24 |
120 |
180 |
380 |
100-120 |
61.2-74.8 |
||||
|
40°C |
50°C |
40°C |
40°C |
||||||||
|
Density/(kg/m3)(20°C) |
< 900 |
900-991 |
880-900 |
< 900 |
|||||||
|
Separating temperature (°C) |
normal temperature, 40-60 best |
90-98 |
80-95 |
||||||||
|
Recommended capcity (l/h) |
17500 |
14000 |
7700-8400 |
6300-7000 |
4900-5600 |
7000-8400 |
3500-4200 |
11200-11900 |
|||
Note: Reserve the right to change specifications without prior notification.
More pictures:
Guarantee:
Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
