| Tên thương hiệu: | Kingreat |
| MOQ: | 1 |
| giá bán: | €27,491.40 |

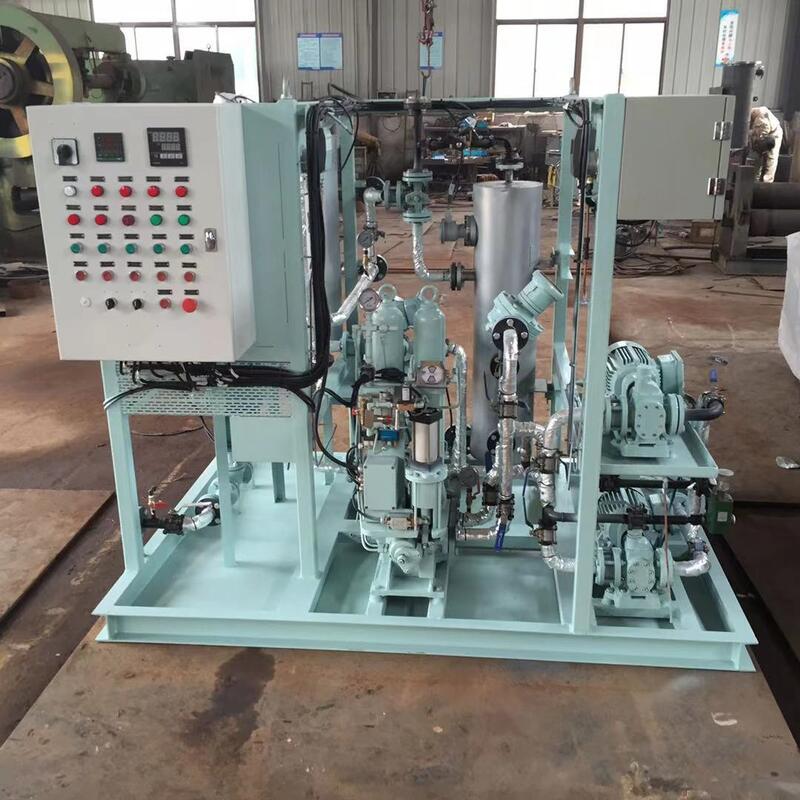

High Effective Heavy Fuel Oil Supply Unit Used in Power Station
The fuel that has been heated from the heavy oil daily oil tank to 70~95℃, passes through the barrel coarse filter, flow meter, fuel supply pump, and then enters the oil mixing cylinder (with automatic bleed system), and then is injected into the heater, Fully automatic electric heater, automatic backwashing filter, and then supply to the diesel engine through the viscosity sensor. The electric heater is used as supplementary heating when the pressure or temperature of the steam or thermal oil in the system is insufficient, and it can also be used as an advance pre-circulation pre-circulation before the main engine starts. Heat; when the oil temperature of the daily-use cabinet reaches a certain value, it can also be used as the main heating. But it is generally not recommended to be used as the main heating. The viscosity sensor converts the actual viscosity signal of the heated fuel into an electrical signal, which is sent to the viscosity controller through signal transmission and processing. The viscosity controller compares the actual input signal with the set signal and then outputs the control signal to the electric execution Mechanism-electric control valve, adjust the opening of the actuator control valve (intelligent continuous control), thereby increasing or decreasing the heating heat of the fuel, keeping the actual viscosity within the set viscosity range, that is, To control the viscosity of the heavy oil at the ideal atomization temperature, the fuel supplied to the diesel engine can be ideally atomized, improve the output power of the diesel engine, and reduce carbon deposits and wear. And wear.
Alarm & Display
Alam
Automatic backwash filter pressure difference alarm Fuel viscosity alarm Supply pump overload alarm Circulating pump overload alarm Remote integrated alarm signal (can be connected to the centralized control box) Low oil return cylinder liquid level alarm
Display
Thermometer installation location Fuel unit outlet 0~200°C Fuel heater oil inlet 0~200°C Viscosity indicator Viscosity display is set on the unit control screen, and it should be extended to the monitoring station or beside the machine at the same time. The seller provides a set of remote viscosity indicator, which is connected to the console by the buyer. Pressure display: supply pump inlet, supply pump outlet, circulating pump outlet, unit exit Control panel: IP23 protection level, B class insulation level. The control panel and the fuel supply unit are integrated, including the following components: Alarm box Supply pump starter Circulating pump starter Independent power supply 440V/60Hz Viscosity controller Filter pressure difference alarm
Nanjing Kingreat Machinery Co.,ltd is a subsidiary of China State Shipbuilding Corporation (CSSC Group).which was
established in 1958, covering an area of 650000m2, there are 2300 staff and employee in our company, 281 of them are
technicians and engineers. It has obtained the approvals and certifications of both ISO9001: 2008 quality control system
and the product quality certificate,BV and CE certificates.Some of our machines gained the new technology
invent patent.
We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems for land power station and container typer power plant. We focus on the necessary equipments on the power station, environmental protection, energy recycling, chemistry and etc. Now ,there are over 150series of decanter
centrifuges and disc separators used home and abroad.
