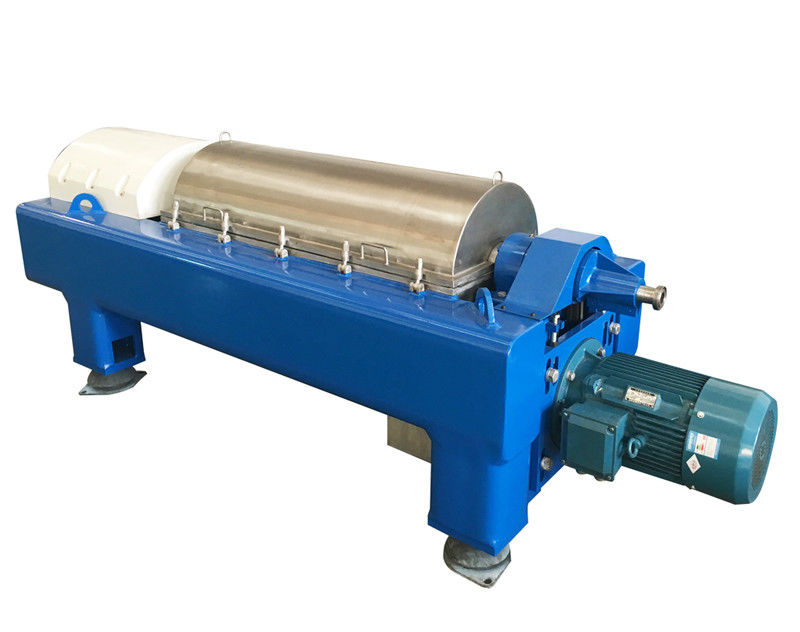

Scroll Discharge Centrifuge 3 Phase Decanter Centrifuge Decanting Machine

Scroll Discharge Centrifuge 3 Phase Decanter Centrifuge Decanting Machine

    • Scroll Discharge Centrifuge 3 Phase Decanter Centrifuge Decanting Machine
  • Scroll Discharge Centrifuge 3 Phase Decanter Centrifuge Decanting Machine

    Thông tin chi tiết sản phẩm:

    Place of Origin: China
    Hàng hiệu: Peony
    Chứng nhận: ISO9001& ISO14001,CE
    Model Number: PDCS

    Thanh toán:

    Minimum Order Quantity: 1
    Giá bán: Please contact us
    Packaging Details: Standard export packings
    Delivery Time: Standard wooden case
    Payment Terms: TT, LC
    Supply Ability: 60sets per month
    Tiếp xúc
    Chi tiết sản phẩm
    Máy loại: Máy ly tâm 3 pha Vòng bi: SKF
    MOC: SS304, SS316L Thiết kế: tương tự như
    Điều kiện làm việc: hệ thống treo 2% -60% kích thước rắn lớn hơn 0,005mm Độ ẩm trong bánh: khoảng 70%
    Tách biệt: Tách rắn-lỏng-lỏng Bằng cấp tự động: Tự động liên tục
    Kiểm soát tốc độ: Biến tần Loại sản phẩm: Thiết bị tách
    Điểm nổi bật:

    centrisys decanter centrifuge

    ,

    drilling mud decanter centrifuge

    Scroll Discharge Centrifuge Decanter Centrifuge 3 Phase Decanting Machine





    Description



    3phase liquid-liquid-solid Decanter centrifuges, also called tricanter, taking advantage of the principle that the heavy liquid, light liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid particles in the liquid to deposit can be achieved.It is the popular machine throughout the world and widely used in the fish oil, palm oil, kitchen waste oil separation etc.





    Advantages

    • 3phase liquid-liquid-solid separation
    • Robust quality
    • Outstanding separation effect
    •  Wide usage in the fish oil and fishmeal field
    •  Corrosion resistant an resistant key parts
    •  Flexible length-to-diameter model for customerized.
    •  Famous and reliable electrical components



    Structure



    Scroll Discharge Centrifuge 3 Phase Decanter Centrifuge Decanting Machine 0



    Specifications



    Model

    Diameter

    (mm)

    Bowl Speed

    (rpm)

    G-force

    Capacity

    (m3/h)

    Main Power

    (kw)

    Weight

    (kg)

    Overall Size

    (L × W × H)

    (mm)

    PDCS-17 420 3300 2550

    5~20

    30/11 3610

    3331 × 990 × 1066

    PDCS-18 450 3300 2739

    4~50

    30/11 3655

    4000 × 1120 × 1239

    PDCS-20 500 3200 2860

    5~45

    55/11 4213

    4489 × 1160 × 1350

    PDCS-21 540 2800 2366

    5~50

    45/15 5290

    4587 × 1285 × 1368

    PS: The above parameters will be subject to the final technical agreement.





    Separation principle



    The decanter is driven by two motors. The main motor drives the bowl and the housing of differential mechanism to rotate through belt, while the auxiliary motor drives through the belt pulley the input shaft of the differential mechanism to rotate, which, after speed change, drives the helical to rotate. In this way the bowl and helical rotate in the same direction but with certain differential speed.



    When the material to be processed (blended liquid consisting of solid phase and liquid phase) enters the inner cavity of the helical propeller through feeding pipe, after being accelerated by the two-way conical accelerator, it flows out of the material outlet, and flows into the bowl wall through inner cloth cylinder. The light, heavy and residue phases that make up the suspending liquid, under the action of different centrifugal force, the residue phase quickly subsides onto the inner wall of the bowl, and the heavy phase adheres close to the surface of the residue phase rather slowly.



    While the light phase adheres close to the surface of the heavy phase rather slowly, forming a dividing plane between the two phases. As the sedimentation of heavy phase increases, the top end of helical blade enters into the sedimentation layer of heavy phase. At this time the bowl and helical propeller are rotating in the same direction at high speed and with a certain difference in speed. This relative difference in rotation speed enables the helical to propel heavy phase particles to move toward the material outlet at the small end, whereas the light phase, through the helical passage, flows toward the liquid phase outlet at the large end, and flows out through the overflow plate with different R values.


    More pictures

    Scroll Discharge Centrifuge 3 Phase Decanter Centrifuge Decanting Machine 1Scroll Discharge Centrifuge 3 Phase Decanter Centrifuge Decanting Machine 2

    Guarantee

    Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
